Bottle Washing & Handling

Rotary Rinser

Premium industrial machinery and plant solution by Rattan Industrial India Pvt. Ltd.

Bottle Washing & Handling Rotary Rinser
Bottle Washing & Handling

Rotary Rinser

Fully Rotary Rinser is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rins

Industrial Engineering

Designed for stable and reliable operation.

High Productivity

Optimised for efficient production output.

Quality Construction

Built using dependable industrial components.

Custom Configuration

Available as per project requirements.

Product Description

Complete overview and product information.

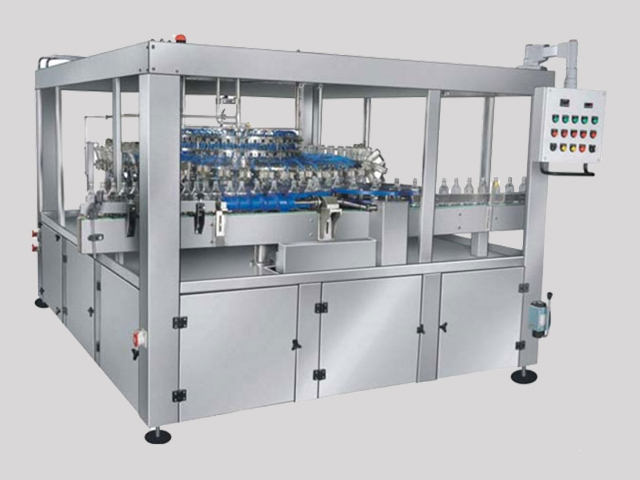

Fully Rotary Rinser is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rinsed from inside as well as from outside and get unloaded automatically at out feed conveyer. These machines are of robust design for trouble free operations Change over to different size of bottles with same neck can be done with within minimum time, since wing nut are uses.

Key Features

Main performance and construction benefits.

Fully Automatic Rotary Bottle Rinsing Machine is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rinsed from inside as well as from outside and get unloaded automatically at out feed conveyer. These machines are of robust design for trouble free operations Change over to different size of bottles with same neck can be done with within minimum time, since wing nut are uses.

Rattan, consistently setting new trends with innovative design for the ever-changing scenario of Distillery industries with a golden endless. experience of 30 years to achieve the objective of “Quality Products For Complete Customer Satisfaction”

Technical Specifications

Detailed technical data and machine configuration.

MODELS (HEADS) LENGTH (MM) WIDTH (MM) HEIGHT (MM) OUTPUT (BPM) RINSING CYCLE
20 2720 1780 1980 60-120 2 STAGE
21 2720 2030 1980 80-150 2 STAGE
30 2720 2285 1980 100-180 2 STAGE
40 3225 2870 1980 150-240 2 STAGE
